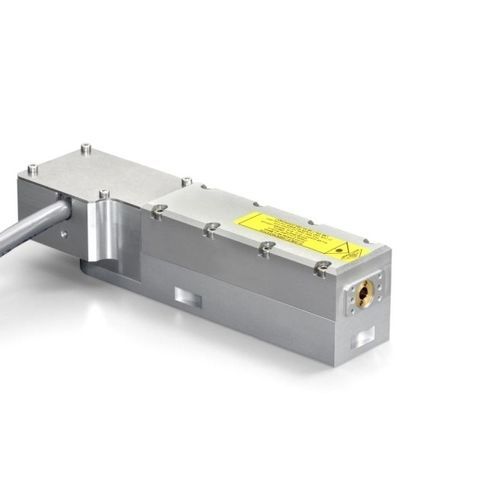

Triggered laser head STP-40K-1x0Q-switchedshort-pulsesolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, short-pulse, triggered
- Technology
- solid-state
- Spectrum
- infrared
- Applications
- instrumentation, for Raman spectroscopy, for medical applications, LIDAR
- Other characteristics
- single longitudinal mode, Nd:YAG
- Power
30,000 W
- Wavelength
1,064 nm
Description
The STP-40K is a triggered Microchip Series laser. It produces 1064nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. The pulse duration can go down to 300ps.
Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters.
KEY FEATURES
> Family: MicroChip
> Energy/Pulse: 12 µJ
> Repetition rate: 0.5 kHz
> Triggered: yes
> Single frequency: yes
> Pulse duration: 400 ps
> Average power: 6 mW
> Package: SNxII
