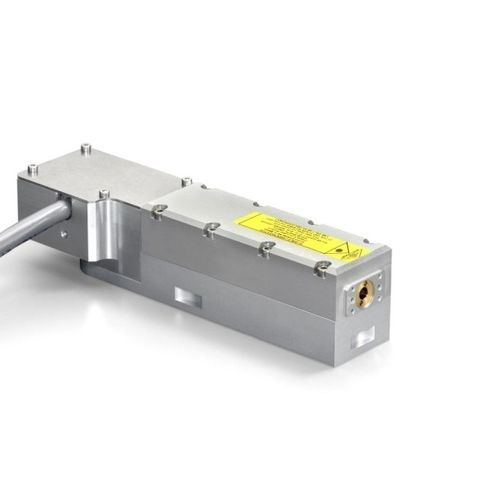

Sub-nanosecond laser head STG-05E-1x0Q-switchedtriggeredsolid-state
Add to favorites
Compare this product
Characteristics
- Operational mode
- Q-switched, triggered, sub-nanosecond
- Technology
- solid-state
- Spectrum
- green, UV
- Applications
- instrumentation, for Raman spectroscopy, high-power, LIDAR
- Other characteristics
- high-performance, Nd:YAG, high-power, single longitudinal mode, air-cooled
- Power
0.005 W, 7,100 W
- Wavelength
532 nm
Description
The STG-05E is a triggered Microchip Series laser. It produces 1064nm pulses which are directly generated from the diode pumped passively Q-switched Nd:YAG microchip engine. A second harmonic generation stage produces the 532 nm radiation with a very good beam quality and lifetime. Pulses can be controlled individually up to 1 kHz. The laser is single longitudinal mode.
Microchip lasers are also easy to operate and service; controllers can be used with every laser head model and swapped within minutes while keeping constant operating parameters.
Family: MicroChip
> Energy/Pulse: 5 µJ
> Repetition rate: 1 kHz
> Triggered: yes
> Single frequency: yes
> Pulse duration: 700 ps
> Package: SNxII
