Hydraulic fitting 22047346028 quickTBSPT
Add to favorites
Compare this product
Characteristics
- Applications
- hydraulic
- Attachment
- quick
- Configuration
- T
- Norms
- BSPT
- Gender
- female
- Diameter
3.175 mm, 6.35 mm
(0.125 in, 0.25 in)- Operating pressure
Min.: 0 bar
(0 psi)Max.: 14 bar
(203.05 psi)
Description

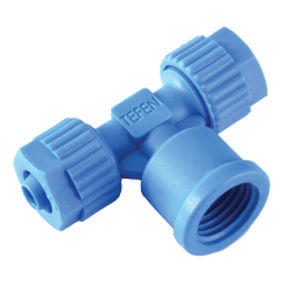

BSPT Female Branch T
Product Code - 22047346028
Name - Barb Block
Size Units - Metric
Material - Reinforced Polypropylene
Thread Type - BSPT
Color - Blue
Temperature Range - +4° C up to +90° C (+40° F up to +195° F)
Thread Size - 1/8″
Tube Outer Diameter 1 - 6 mm
Carton Quantity - 200
Application
Hydraulic systems. Excellent for indoor, outdoor and field applications.
Comments
Advantages: Quick assembly, good resistance to chemicals and fertilizers.
