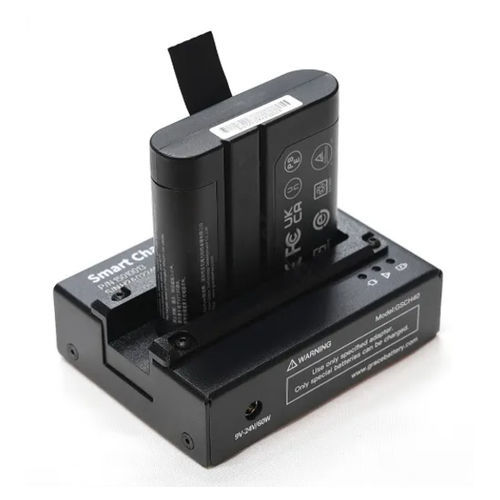

Desktop battery charger GSCH40

portableLi-ionCE

GSCH40 smart battery charger compatible with all TEFOO standard smart batteries. Features ● Wide range voltage input. ● Compliant with SMBus specification, compatible with all TEFOO smart batteries.. ● Efficient and fast charging. ● Meet JEITA charging rules.. ● Complete safety protection functions, such as over charging, over discharging, over current, over temperature, short circuit, etc. Application Portable equipment, Industry and medical field. Technical Specification Overview Input interface 2.1φx5.5φDC Output Interface 5PIN Blade smart battery interface Operate temperature -30°C~70°C Charge temperature 0°C~50°C Electrical performance Input voltage 9-24VDC（The input voltage should be higher than 1V of the standard battery charging voltage） Input power ≥60W Maximum output power 50.4W Charging efficiency ＞85% Dimensions Length 111.0mm ± 0.3mm Width 84.0mm ± 0.3mm Height 35.0mm ± 0.3mm Weight 200g ± 10g LED instruction Power on Blue light is always on Charging Green light flashing Fully charged Green light is always on Failure Red light is always on Recommended adapter（Optional） Model GSP24V060W55210 Rated voltage /current 24V/2.5A Rated Power 60.0W
