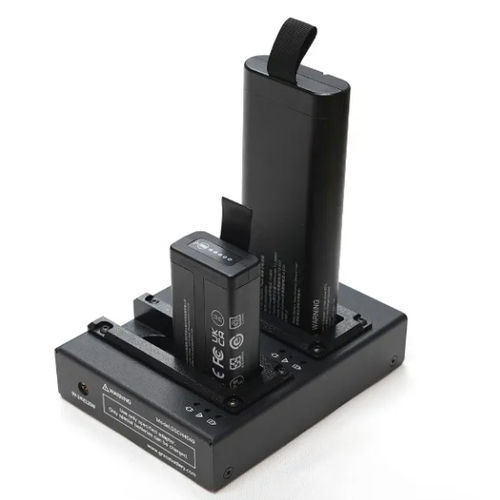

Desktop battery charger GSCH4040

portableLi-ionCE

GSCH4040 smart battery charger compatible with all TEFOO standard smart batteries. Features ● Wide range voltage input. ● Compliant with SMBus specification, compatible with all TEFOO smart batteries.. ● Efficient and fast charging. ● Dual battery simultaneously, independent charging control. ● Complete safety protection functions, such as over charging, over discharging, over current, over temperature, short circuit, etc. Application Portable equipment, Industry and medical field. Technical Specification Overview Input interface 2.5φx5.5φDC Output Interface 5PIN Blade smart battery interface Operate temperature -30°C~70°C Charge temperature 0°C~50°C Electrical performance Input voltage 9-24VDC（The input voltage should be higher than 1V of the standard battery charging voltage） Input power ≥120W Maximum output power (single channel) 50.4W Charging efficiency ＞85% Dimensions Length 145.0mm ± 0.5mm Width 111.5mm ± 0.5mm Height 38.0mm ± 1mm LED instruction Power on Blue light is always on Charging Green light flashing Fully charged Green light is always on Failure Red light is always on Recommended adapter（Optional） Model GSP19V120W55250 Rated voltage /current 19.5V/6.15A Rated Power 120W
