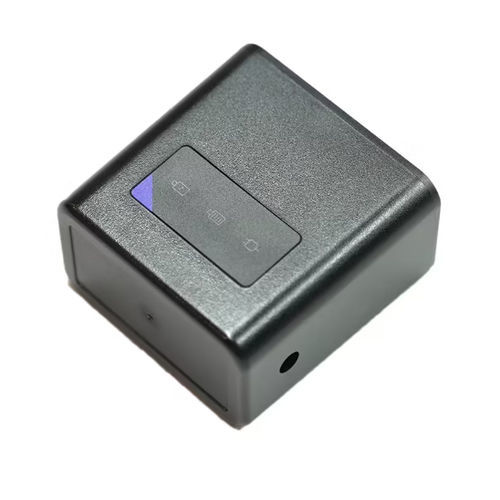

GSCH034D Portable Charger compatible with the GS2034 series.
Features
● Wide range voltage input.
● Lightweight, small volume.
● Efficient and fast charging.
● Compatible with GS2034 series batteries.
● Complete safety protection functions, such as over charging, over discharging, over current, over temperature, short circuit, etc.
Application
Portable equipment, Industry and medical field.
Technical Specification
Overview
Input interface
1.3φx3.9φDC
Output Interface
5PIN Blade smart battery interface
Operate temperature
-30°C~70°C
Charge temperature
0°C~50°C
Charging time
GS2034DH: 3.0h
Electrical performance
Input voltage
19-24VDC
Input power
≥28W
Maximum output power
25.2W
Charging efficiency
>85%
Dimensions
Length
52.7mm ± 0.3mm
Width
32.7mm ± 0.3mm
Height
50.6mm ± 0.3mm
Weight
45g ± 5g
LED instruction
Power on
Right light on
Charging
Left light on
Fully charged
Middle light on
Recommended adapter(Optional)
Model
GSP19V029W35135
Rated voltage /current
19V/1.5A
Rated Power
28.5W
