Desktop battery charger GSCH037D

portableLi-ionCE

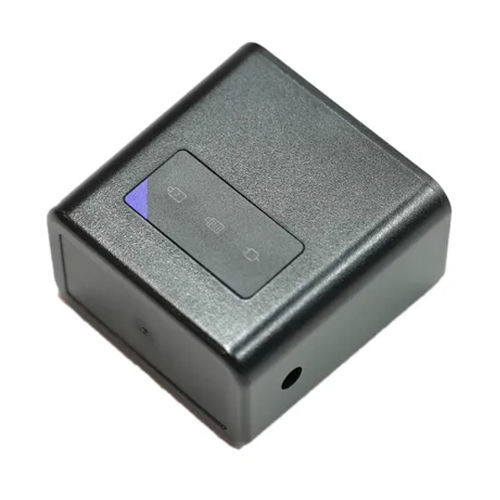

GSCH037D Portable Charger compatible with the GS2037 series. Features ● Wide range voltage input. ● Lightweight, small volume. ● Efficient and fast charging. ● Compatible with GS2037 series batteries. ● Complete safety protection functions, such as over charging, over discharging, over current, over temperature, short circuit, etc. Application Portable equipment, Industry and medical field. Technical Specification Overview Input interface 1.3φx3.9φDC Output Interface 5PIN Blade smart battery interface Operate temperature -30°C~70°C Charge temperature 0°C~50°C Charging time GS2037DH: 4.9h GS2037BH: 2.4h GS2037BL: 1.7h Electrical performance Input voltage 10-24VDC Input power ≥20W Maximum output power 16.8W Charging efficiency ＞85% Dimensions Length 52.7mm ± 0.3mm Width 32.7mm ± 0.3mm Height 50.6mm ± 0.3mm Weight 45g ± 5g LED instruction Power on Right light on Charging Left light on Fully charged Middle light on Recommended adapter（Optional） Model GSP19V029W35135 Rated voltage /current 19V/1.5A Rated Power 28.5W
