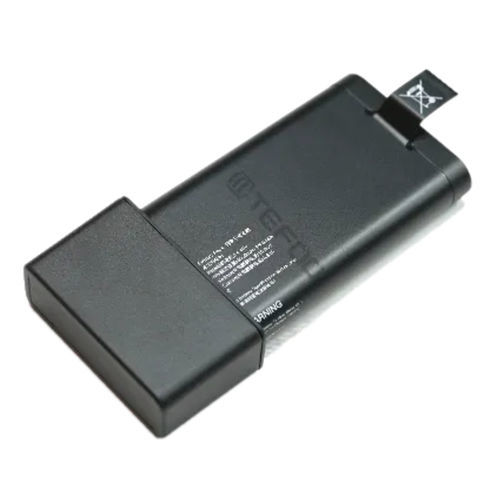

Desktop battery charger GSCH057DportableLi-ionCE
Add to favorites
Compare this product
Characteristics
- Configuration
- desktop, portable
- Battery type
- Li-ion
- Certifications
- CE
- Other characteristics
- smart
- Voltage
8.4 V
- Amperage
Max.: 3 A
Min.: 0 A
Description
GSCH057D Portable Charger compatible with the GS2057 series.
Features
● Wide range voltage input.
● Lightweight, small volume.
● Efficient and fast charging.
● Compatible with GS2057 series batteries.
● Complete safety protection functions, such as over charging, over discharging, over current, over temperature, short circuit, etc.
Application
Portable equipment, Industry and medical field.
Technical Specification
Overview
Input interface
2.1φx5.5φDC
Output Interface
5PIN Blade smart battery interface
Operate temperature
-30°C~70°C
Charge temperature
0°C~50°C
Charging time
GS2057DH: 3.0h
GS2057HH: 5.4h
Electrical performance
Input voltage
10-24VDC
Input power
≥28W
Maximum output power
25.2W
Charging efficiency
＞85%
Dimensions
Length
87.6mm ± 0.3mm
Width
33.2mm ± 0.3mm
Height
50.6mm ± 0.3mm
Weight
73g ± 5g
LED instruction
Power on
Right light on
Charging
Left light on
Fully charged
Middle light on
Recommended adapter（Optional）
Model
GSP19V048W55210
Rated voltage /current
19V/2.5A
Rated Power
47.5W
Catalogs
No catalogs are available for this product.
See all of TEFOO‘s catalogs
