Relative humidity and temperature transmitter RDP series
duct-mountstainless steel

Relative humidity and temperature transmitter - RDP series - TEGAM - duct-mount / stainless steel
Relative humidity and temperature transmitter - RDP series - TEGAM - duct-mount / stainless steel
Add to favorites
Compare this product


Characteristics

Type
relative
Mounting
duct-mount
Other characteristics
stainless steel

Description

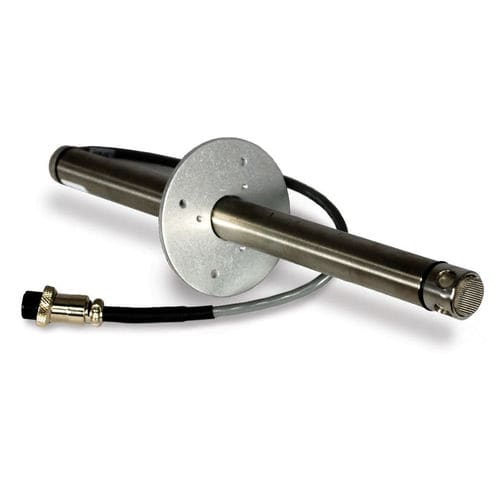

TEGAM’s Humitran duct probes provide a reliable, accurate, and low cost method for monitoring relative humidity plus temperature. Solid state sensors supply excellent sensitivity, fast response and long term stability. Simple hook up and linearized output permit interfacing with most display or control devices. Model RDP-20C outputs a 4 mA to 20 mA current loop for long virtually unlimited cable distances. Technical Specifications • - Humidity Range : 3% to 95% RH • - Humidity Accuracy : ± 2% • - Temperature Range : 0 °C to 100 °C • - Temperature Accuracy : ± 0.6°C • - Input : 6 V to 30 V DC supply • - Temperature and RH output : 4 mA to 20 mA • - Transmitter built into the probe housing • - Water tight stainless steel housing • - One year warranty • - Made in USA

Catalogs

RDP-20C
RDP-20C
1 Pages
