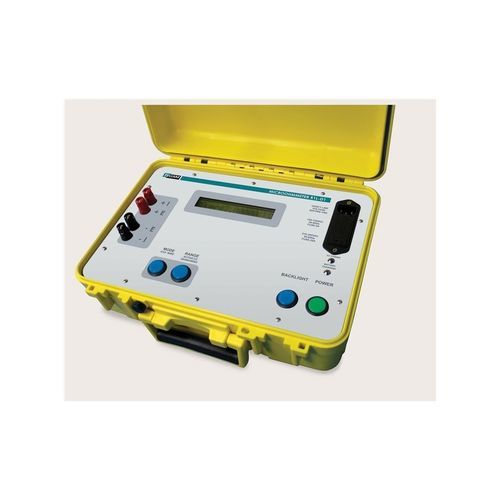

Digital milliohmmeter R1L-D1

portable4-wire

The Model R1L-D1 is a portable Milli-Ohmmeter and RTD monitor for measuring low resistance values with high accuracy. It is optimized for measuring 100 and 1000 Ω 3 and 4-wire RTDs, and utilizes the 4-wire technique to eliminate errors caused by the connection resistances. The R1L-D1 calculates the value of the resistor under test, and indicates the value on an LCD. 2 and 3-wire measurement methods can also be selected. To maintain accuracy, an automatic zero circuit turns off the test current and resets the zero of the instrument prior to each resistance reading. This also serves to null out any thermally-generated voltages in the test leads or in the resistance being tested. Technical Specifications • - Rugged: MIL-PRF-28800F Class 3 • - Portable: Longest Rechargeable Battery Life (140 Hour) • - Ranges: 200 mΩ to 2 kΩ (Auto & Manual) • - High Accuracy: 0.05% of reading • - Resolution: 1 µΩ • - 2, 3 or 4-wire measurement • - Offset Compensation • - Back Lit Display • - NSN: 6625-01-456-9125 • - 3 year warranty • - Milli-Ohmmeter and RTD Meter Is Made in USA
