Digital megohmmeter R1M-A

portablerugged

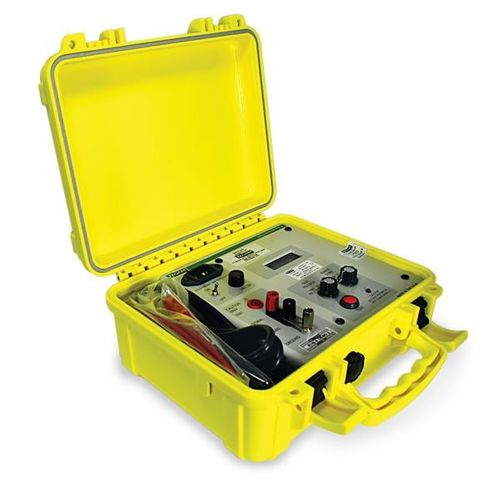

The Model R1M-A from TEGAM is a portable Megohmmeter designed to measure high values of resistance associated with the measurement of insulation resistance. It has six resistance ranges from 1 MΩ full scale to 200 GΩ full scale. Four test voltages of 50, 100, 250, and 500 volts DC are provided (50 V maximum to be used with resistances less than 1 MΩ). Resistance readings are displayed on a 3 1/2 digit LCD. The R1M-A is packaged in a rugged, weather tight case, designed to withstand the wear and tear of industrial and military applications, and has a gasket lid. An internal compartment is provided to store the line cord and a set test cables for this megohmmeter. Technical Specifications • - Megohmmeter measures up to 200 GΩ in 6 Selectable Ranges • - Measurement Accuracy ± 5% • - 50, 100, 250, 500 V Test Voltage • - 3 1/2 Digit Display • - Rugged Weather-Tight Case • - TEGAM Megohmmeters Use Versatile Test Probes • - NSN: 6625-01-344-9273 • - 3 year warranty • - TEGAM megohmmeter is made in USA
