Power measurement system 260 series

calibration

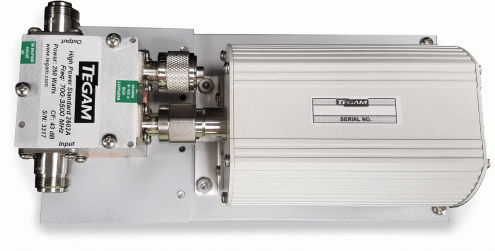

TEGAM Temperature Stabilized Coaxial RF Power Transfer Standards enable the precise measurement of high power (+34 to +54 dBm) microwave power in the 700 MHz to 3500 MHz frequency range. The TEGAM 2602A working standards is constructed of a directional coupler paired with a 1505A thermistor power standard. The design has the coupler and 1505A mounted on an aluminum heat sink to reduce changes in coupling factor attributable to heating. These standards are highly accurate and stable with time and temperature. They are ideal for use as standards for the transfer of calibration factors to other high power RF standards and power sensors. The calibration of these standards is traceable to the International System of Units (SI) through the National Institute of Standards and Technology (NIST) or other recognized National Metrology Institutes. Technical Specifications • Calibrate High Power RF Sensing devices from 700 to 3500 MHz • 2.5 W to 250 W dynamic range (+34 to +54 dBm) • TEGAM High Power RF Calibration System Compatible
