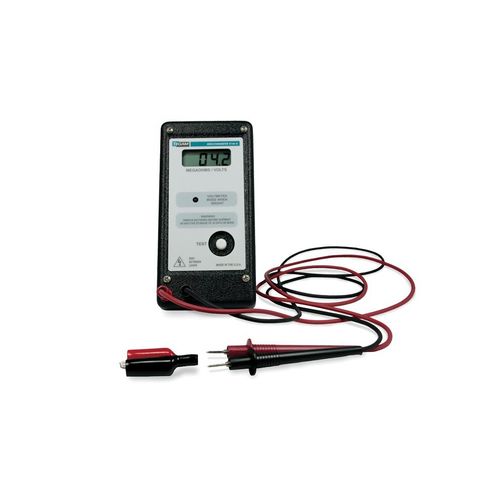

Digital megohmmeter R1M-B

portablerugged

The Model R1M-B Handheld Voltmeter/ Megohmmeter is designed to measure insulation resistance in “live” circuits, which may have voltage present. It can be connected to 600 V RMS AC or DC without damage, and its mode of operation is automatic. It has no fuse to replace. The R1M-B megohmmeter will operate after a drop from a height of four feet to a concrete floor. All TEGAM units are tested in an environmental chamber at 71° C and 95.5% RH. The R1M-B complies with MIL-PRF-28800, Type III, Class 3, Style E for rugged operational environments and shipboard applications. These voltmeters/megohmmeters perform under the extremes of heat, cold, humidity, shock, vibration, and operator abuse. Technical Specifications • - Megohmmeter measures 1 to 200 MΩ • - 500 V Test Voltage • - Simple One-Range Operation • - Voltmeter/Megohmmeter Measures AC RMS Voltage to 600 V • - LED on When Voltage is Present • - Rugged to Mil Specifications • - Single Push Button For Test • - 9 V Battery Operation • - NSN: 6625-01-353-7077 • - 1 year warranty on this TEGAM Megohmmeter • - TEGAM Megohmmeters Are Made in USA
