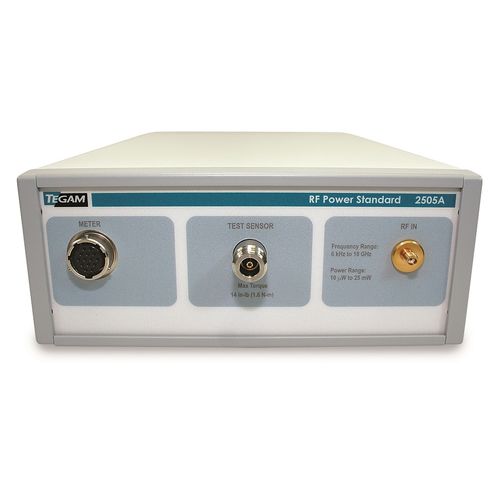

Calibration standard 2505A

frequency

TEGAM Temperature Stabilized Coaxial RF Power Transfer Standards enable the precise measurement of microwave power in the 9 kHz to 18 GHz frequency range. These standards are highly accurate and stable with time and temperature. The Model 2505A is a feedthrough Thermistor standard used for the calibration of bolometer, thermo-couple,and diode terminating power sensors. The Model 2505A features a Type N female connector, and the 1510A features a compatible Type N male connector. These RF Power Standards work with TEGAM’s new 1830A RF Power Meter, as well as our legacy DC Self-Balancing Bridges, 1806 and 1806B. System configurations employing instruments of this accuracy typically achieve calibration factor transfer results normally found only in primary standards laboratories. Technical Specifications • - NSN: 6625-01-655-7060 • - Calibrate RF Power Sensors from 9 kHz to 18 GHz • - PMX & SYSIIB Compatible • - 0.01 to 10 mW usable range (-20 to +10 dBm) • - Primary (1505A) and Working (2505A) Transfer Standard configurations • - Rack mount option available • - 3 year warranty • - Made in USA
