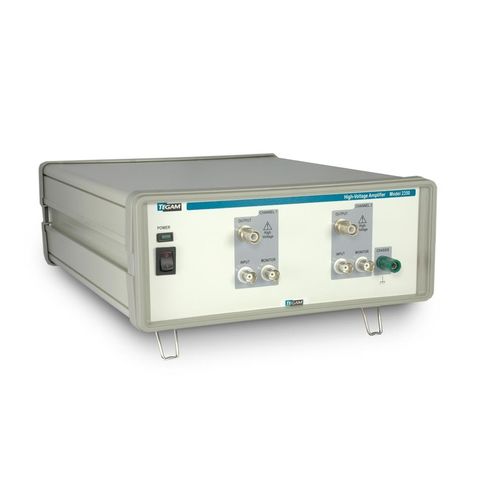

Power amplifier 2350

limitinghigh-voltageprecision

The Model 2350 High Voltage Amplifier expands the amplitude range of any standard, 50 Ω function, pulse, or waveform generator to 400 Vp-p. Model 2350 comes standard with a fixed gain of +50, and gains from 10 to 100 are available as special order. The output current is rated at 40 mA continuous with a 0.2 Ω output impedance. Each channel has an independent, buffered, voltage monitor output for applications that require a low-level representation of the output signal. The buffers produce a reduction of 200:1 for 50 Ω inputs and 100:1 for 1 MΩ and above inputs. A current limiting function senses the current in either direction providing maximum protection to the amplifier during operation. Technical Specifications • - Output Voltage: 400 Vp-p (± 200 V) • - Output Current: 40 mA • - Bandwidth: DC to 2 MHz • - Slew Rate: >250 V/µs • - Channels: 2 • - Standard x50 gain (10-100 available) • - Independent monitor output • - Product Forum • - 1 year warranty • - Made in USA
