Power amplifier 2340

limitinghigh-voltageprecision

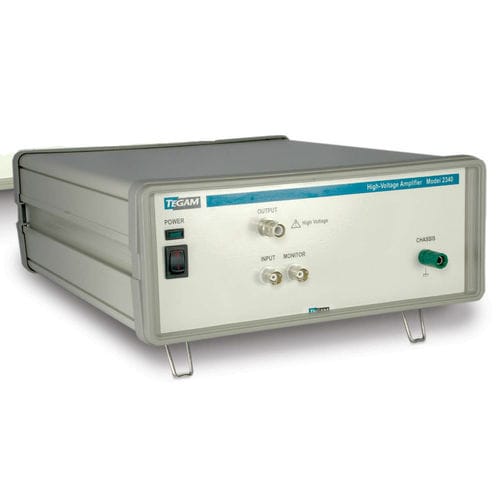

Precision Power Amplifier High Voltage Single Channel The Model 2340 High Voltage Amplifier expands the amplitude range of any standard function, pulse or waveform generator to 400 Vp-p. There is also a special high impedance input option for DAC boards. The DC coupled design enables combined DC and AC wave forms for greatest flexibility in test applications. The response and gain are calibrated for a faithful reproduction of the test signal. The output current is rated at 40 mA continuous with a 0.2 Ω output impedance. Each channel has an independent, buffered, voltage monitor output for applications that require a low-level representation of the output signal. The buffers produce a reduction of 200:1 for 50 Ω inputs and 100:1 for 1 MΩ and above inputs. A current limiting function senses the current in either direction providing maximum protection to the amplifier during operation. Technical Specifications • - Works with ARB’s, Function Generators and DAC Boards • - An essential tool for every test bench • - Factory calibrated performance • - Output Voltage: 400 Vp-p (± 200 V) • - Output Current: 40 mA • - Bandwidth: DC to 2 MHz • - Slew Rate: >250 V/µs • - Channels: 1, 2 Channel version available in our 2350 • - Standard x50 gain (10-100 available) • - High input impedance available for DAC board compatibility • - Scaled voltage monitor output • - Product Forums • - 1 year warranty • - Made in USA
