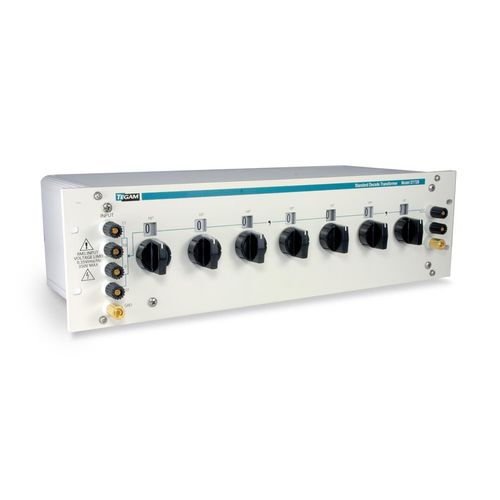

Voltage divider DT72B

calibration

Product Description Model DT72B is an inductive voltage divider that meets or exceeds all of the requirements for a calibration standard in precision measurement applications. It is easy to integrate into systems for calibration of voltage dividers, transformer standards, synchro/resolver standards, transformers, calibrators, ammeters, and voltmeters. It can also be used to make impedance or capacitance comparisons. The ratio accuracy is traceable to the National Institute of Standards and Technology. Technical Specifications • - Resolution 0.1 ppm • - Terminal linearity 0.9 ppm • - Bandwidth 50 Hz to 20 kHz • - Parallel switches reduce contact resistance • - Switch Resistors virtually eliminate switch transients • - Ratio range from -0.0111111 to +1.1111110 • - 1 Year warranty • - Made in USA
