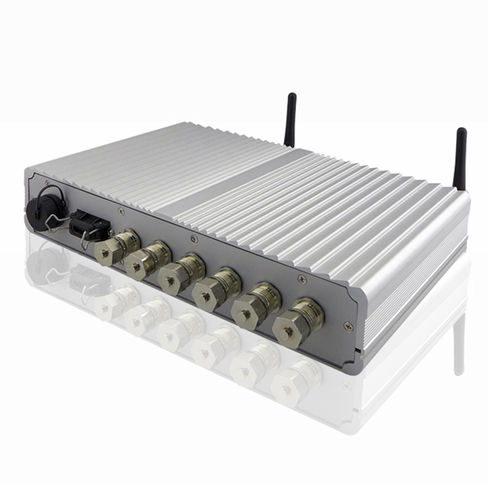

Box PC TWB-3520
Intel® Ivy BridgeIntel® Core i series3rd generation Intel® Core™

Box PC - TWB-3520 - Teguar Computers - Intel® Ivy Bridge / Intel® Core i series / 3rd generation Intel® Core™
Box PC - TWB-3520 - Teguar Computers - Intel® Ivy Bridge / Intel® Core i series / 3rd generation Intel® Core™
Box PC - TWB-3520 - Teguar Computers - Intel® Ivy Bridge / Intel® Core i series / 3rd generation Intel® Core™ - image - 2
Box PC - TWB-3520 - Teguar Computers - Intel® Ivy Bridge / Intel® Core i series / 3rd generation Intel® Core™ - image - 3
Add to favorites
Compare this product


Characteristics

Type
box
Processor
Intel® Ivy Bridge, Intel® Core i series, 3rd generation Intel® Core™, Intel® Core™ i7-3517UE
Ports
RS-232, DVI, DDR3L SODIMM, USB 2.0, RJ45, RS-485, RS-422, 4G, CAN bus, 3G, SATA, Mini PCIe
Operating system
Windows 10 IoT Enterprise, Windows 7, Windows 8.1
Size
compact
Domain
industrial
Protection level
IP65, rugged, waterproof, NEMA 4X
Other characteristics
fanless, SSD, cost-effective

Description

This Teguar industrial and fully waterproof fanless computer can be used in a wide variety of applications that require rugged and compact computer design. The waterproof design of the TWB-3520 is both cost-effective and space-saving while being a fully fanless box pc which makes it an ideal solution for embedded systems. This fanless and noiseless Box PC is constructed out of rugged aluminum housing which acts as a heatsink for maintenance-free cooling. It is powered by an Intel® Core i7-3517UE 1.7GHz processor. The TWB-3520 can be equipped with up to 8GB DDR3 RAM and is suitable for wall mounting through the included wall mount kit. This waterproof Box PC features one Mini PCIe slot that allows for utilization of Wi-Fi or 3G/4Gmodules. Key Highlights 9~36V DC with Isolation The TWB-3520 is both cost-effective and space-saving while being a fully fanless box pc. This fanless and noiseless Box PC is powered by an Intel Core i7-3517UE 1.7GHz processor and is fully waterproof.
