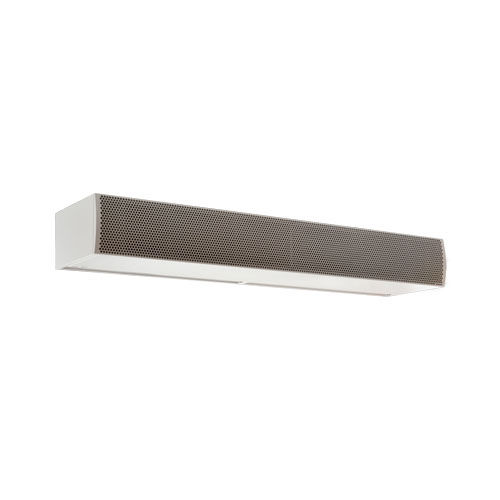

Commercial air curtain ZEPHYR EC series

ambientceiling-mounted

Supplied with LPHW 82/71 C, 80/60 C or 60/40 C warm water heater or electric heating as standard. The outlet grilles can be adjusted in five positions. The outlet grilles can be adjusted to suit different indoor requirements: Vertical air flowAt 10 C and 15C inwards, for use in the heating seasonAt 10 Cand 15C outwards, for use when air conditioning is operating With EC Fans with built- in speed controller - without capacitor and without transformer. Efficiency 85%! (20% better than convertion fans). In consequence of using EC technology the operating costs will be reduced. The electronic control is suitable for connection of a magnetic valve. The controller is fitted as standard with a switch of summer and winter settings (magnetic valve open or closed). A potential-free contact can be connected to any desired building managmentsystem. A two or three- way valve can be easily connected to the warm water connections. Accessories are provided seperately for fiffting above a suspended ceiling or flush with the suspended ceiling, delivered with a 20 metre insulated cable with 2 plugs. In the case of several air curtains on controller, connection cables between the air curtains will be supplied.
