Communications converter TBS09S
serialModbusDIN rail

Communications converter - TBS09S - TEKBOX - serial / Modbus / DIN rail
Communications converter - TBS09S - TEKBOX - serial / Modbus / DIN rail
Communications converter - TBS09S - TEKBOX - serial / Modbus / DIN rail - image - 2
Add to favorites
Compare this product


Characteristics

Type
communications
Bus
serial, Modbus
Other characteristics
DIN rail

Description

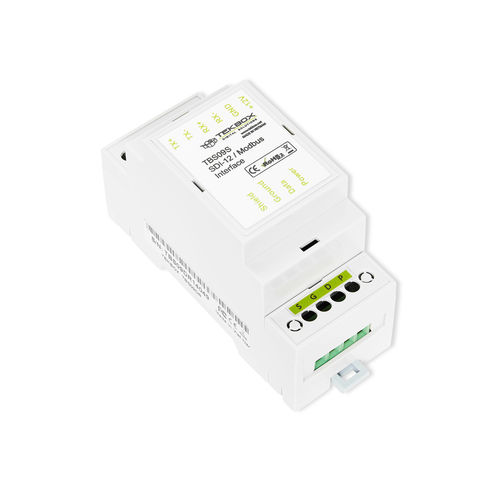

The TBS09S is a converter which connects an SDI-12 sensors to Modbus. It can connect multiple SDI-12 sensors in parallel by setting the corresponding address. SPECIFICATIONS Modbus Master to SDI 12 Slave Converter Multiple sensors can be connected SDI-12 Standard V1.3 Highly configurable Switched sensor supply voltage output 6 – 16V supply voltage 7mA current consumption when active Less than 100µA idle current Operating Temperature Range: – 40°C … + 80°C TARGET APPLICATION SDI-12 sensor networks
