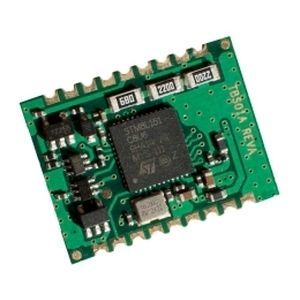

Communications converter TBS01A

serialUART

The TBS01A SDI-12 to UART module is a bi-directional interface for the conversion of commands and data into SDI-12 format and vice versa. The module is Plug and Play, targeting cost sensitive data logging applications. It offers low current consumption, small footprint and easy integration into products which require a SDI-12 interface. The user does not need to invest any time for the implementation of the SDI-12 protocol and interface hardware, as this is an integral part of the SDI-12 UART interface module. The TB01A contains all the necessary components of a complete SDI-12 interface. It includes SDI-12 front-end, controller, crystal and passive components. TBS01A has been engineered specifically for applications where cost, performance, time to market and ease of integration are prime considerations. The TBS01A is a functionally and mechanically compatible replacement of the TBS01 module. The TBS01A is also available on a breakout board. SPECIFICATIONS SDI-12 to UART Interface SDI-12 Standard V1.3 Selectable data rate: 4800, 9600, 19200, 38400 Baud Plug and Play Power Down Mode 3.3V UART interface 3.3V, 5V supply voltage 23 mm x 18 mm 2.3 mm module thickness Operating Temperature Range: – 40°C … + 85°C TARGET APPLICATION SDI-12 Data Logger SDI-12 to RS232 Interface SDI-12 to USB Interface
