Rotary piezoelectric motor WLG-75-R
ultrasonic24 Vnon-magnetic

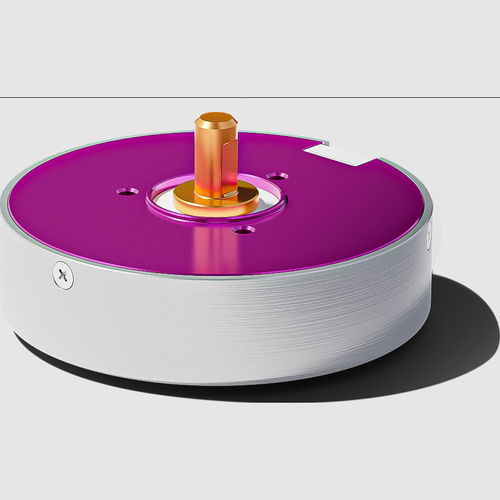

Rotary piezoelectric motor - WLG-75-R - TEKCELEO - ultrasonic / 24 V / non-magnetic
Rotary piezoelectric motor - WLG-75-R - TEKCELEO - ultrasonic / 24 V / non-magnetic
Rotary piezoelectric motor - WLG-75-R - TEKCELEO - ultrasonic / 24 V / non-magnetic - image - 2
Rotary piezoelectric motor - WLG-75-R - TEKCELEO - ultrasonic / 24 V / non-magnetic - image - 3
Add to favorites
Compare this product


Characteristics

Movement
rotary
Technology
ultrasonic
Voltage
24 V
Other characteristics
non-magnetic, with built-in encoder, high-performance
Rotational speed

Max.: 200 rpm
(1,256.64 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

150 rpm
(942.48 rad.min-1)

Force

10 N

Torque

Max.: 1.2 Nm
(0.885 ft.lb)

Min.: 0 Nm
(0 ft.lb)

0.75 Nm
(0.553 ft.lb)

Description

Introducing Tekceleo’s WLG-75-R, a powerful ultrasonic motor from our Wavelling motor range. As the more powerful compact piezo motor of our range, it is designed for torque and efficiency, while providing very high accuracy in applications such as robotics, automation, and medical devices. Its non-magnetic properties make it ideal for use in sensitive environments, while its high torque-low-speed ratio allows for smooth and accurate motion in tight spaces.
