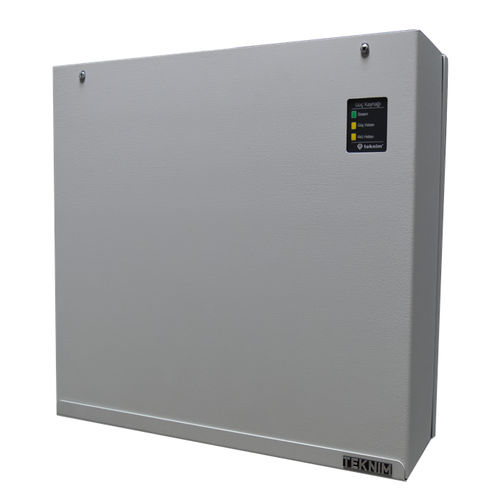

External power supply TPU-8245
AC/DCdual-outputsingle-output

Add to favorites

Compare this product

Characteristics

Type

AC/DC

Output

single-output, dual-output

Network

single-phase

Protection

with short-circuit protection, with overload protection

Features

external

Secondary function

battery charger

Other characteristics

robust

Input voltage

Max.: 240 V

Min.: 110 V

Output voltage

12 V, 24 V

Current

5 A

Description

• EN 54-4 Certified • Selectable Single or Dual Output • Supports 7Ah or 12Ah Backup Battery • Dry Contact Relay Output for Error • Led Indicators for Fault • Intelligent Battery Charging with Temperature Compensation • Wide Input Voltage Range, 110 to 240VAC • Protection Against Short Circuit and Overload Conditions • Fully Enclosed and Robust Metallic Case TPU-8245 is designed to use in systems where required external power supply by providing 24VDC 5Ah uninterrupted power with an intelligent battery charger unit and complies with EN54-4. Both input and outputs of devices are protected against short circuit and overload. The device allows to use 7Ah or 12Ah battery options.
