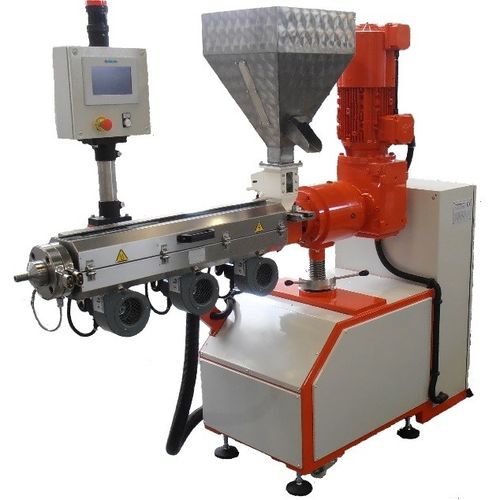

PVC coextruder Rszsingle-screwcompact
Add to favorites
Compare this product
Characteristics
- Treated material
- for PVC
- Number of screws
- single-screw
- Other characteristics
- compact
- Output
Max.: 30 kg/h
(66.1387 lb/h)Min.: 1 kg/h
(2.2046 lb/h)- Screw diameter
Max.: 40 mm
(1.6 in)Min.: 20 mm
(0.8 in)- Screw length
Max.: 1,050 mm
(41 in)Min.: 500 mm
(20 in)- Temperature
Max.: 280 °C
(536 °F)180 °C
(356 °F)Min.: 80 °C
(176 °F)- Overall length
Max.: 2,200 mm
(87 in)Min.: 1,400 mm
(55 in)- Overall width
Max.: 900 mm
(35 in)Min.: 600 mm
(24 in)- Total height
Max.: 2,100 mm
(83 in)Min.: 2,100 mm
(83 in)- Weight
Max.: 400 kg
(882 lb)Min.: 300 kg
(661 lb)- Power
Max.: 16 kW
(21.75 hp)Min.: 5 kW
(6.8 hp)
Description
•Base with sheet metal plate, swivel wheels for moving, and mounting feet.
•Work height adjustment using trapezoidal screw from 1000 to 1100 mm
•Steel, ground, and nitrided extrusion screw.
•Extrusion cylinder in nitrided steel.
•The extrusion section is divided into independent thermo-regulation zones with heating through electrical collar heating elements and cooling with electric fans.
•Stainless steel cylinder protection with insulated casings
•Cylinder, helical and straight-toothed reduction units in case-hardened and tempered steel, ground teeth.
•Direct motor-reduction unit transmission.
•AC motor
•Water-cooled supply section with manual adjustment valve.
•Stainless steel hopper.
