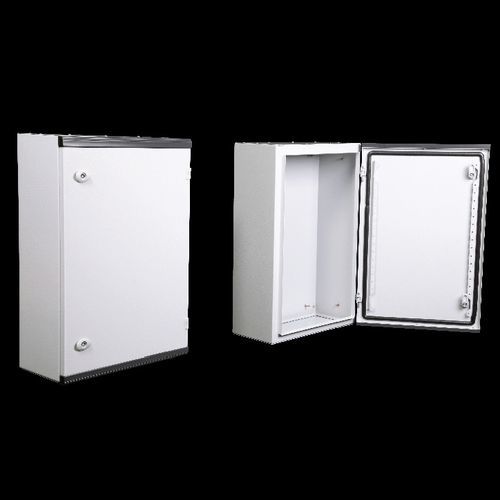

Wall-mount enclosure Ares compactfloor-standingrectangular
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount, compact, floor-standing
- Configuration
- rectangular
- Material
- polyester, mild steel, galvanised steel, epoxy
- Application
- power distribution
- Protection level
- NEMA 4, IP66, IP54
- Other characteristics
- glass door
- Width
300 mm, 400 mm, 500 mm, 600 mm, 800 mm
(11.8 in, 15.7 in, 19.7 in, 23.6 in, 31.5 in)- Height
Max.: 1,150 mm
(45.3 in)Min.: 400 mm
(15.7 in)- Depth
150 mm, 200 mm, 280 mm
(5.91 in, 7.87 in, 11.02 in)
Description
Material:
• Enclosure and parts, door : 1,00 - 1,50 mm mild steel
• Mounting plate : 1,50 – 2,00 mm Galvanized steel
Surface Process:
• Mild Steel Parts: : Iron-phosphate plated, RAL7035 Rough Epoxy, polyester powder-coating
• Mounting Plate: Galvanized
Supply Includes : 1 pcs body,1 set bottom-top lid, 1 pcs front door, 2 pcs support rails, 1 pcs door key, 1 pcs mounting plate
