Diesel generator set TJ350BD
three-phasestationary50 Hz

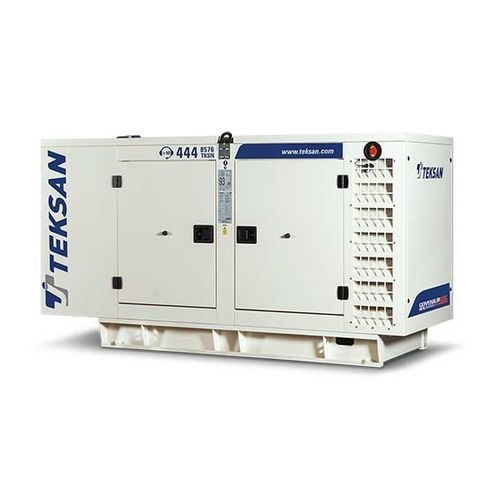

Diesel generator set - TJ350BD  - Teksan - three-phase / stationary / 50 Hz
Diesel generator set - TJ350BD  - Teksan - three-phase / stationary / 50 Hz
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
stationary
Frequency
50 Hz
Cooling system
water-cooled
Options and accessories
with cover
Power in kVA

323 kVA, 350 kVA
(439.16 hp, 475.87 hp)

Rated capacity

258 kW, 280 kW
(350.8 hp, 380.7 hp)

Voltage

400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Width

1,300 mm
(51 in)

Height

1,600 mm, 1,850 mm
(63 in, 73 in)

Weight

2,459 kg, 3,024 kg
(5,421.17 lb, 6,666.78 lb)

Description

Engine In Teksan generator sets, leading engine brands that have state of the art technology and have compliance with ISO 8528, ISO 3046, BS 5514, DIN 6271 standarts, are being used. These engines with low fuel consumption, provide accurate speed setting and order, mount to the fuel pump, also have mechanic or electronic type governors. Alternator In products Teksan produced, leading alternator brands of the world that have state of the art technology, high quality, productivity and durability, are being used. All alternators, which pass necessary test process and found appropriate according to EC 60034-1; CEI EN 60034-1; BS 4999-5000; VDE 0530, NF 51- 100,111; OVE M-10, NEMA MG 1.22. standarts, have bearing system that does not need maintenance, with electronic type voltage regulator providing voltage setting.

Catalogs

No catalogs are available for this product.

See all of Teksan‘s catalogs
