Diesel generator set TJ840PE
three-phasecontainerized50 Hz

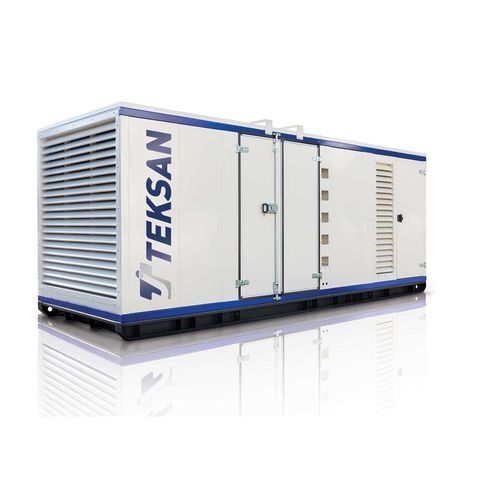

Diesel generator set - TJ840PE  - Teksan - three-phase / containerized / 50 Hz
Diesel generator set - TJ840PE  - Teksan - three-phase / containerized / 50 Hz
Add to favorites
Compare this product


Characteristics

Motor type
diesel
Phase
three-phase
Portability
containerized
Frequency
50 Hz
Cooling system
water-cooled
Power in kVA

763 kVA, 841 kVA
(1,037.39 hp, 1,143.44 hp)

Rated capacity

610 kW, 672 kW
(829.4 hp, 913.7 hp)

Voltage

400 V

Rotational speed

1,500 rpm
(9,425 rad.min-1)

Width

1,700 mm, 2,200 mm
(67 in, 87 in)

Noise level

86 dB

Height

2,330 mm, 2,400 mm
(92 in, 94 in)

Weight

4,894 kg, 7,609 kg
(10,789.42 lb, 16,774.97 lb)

Description

Engine In Teksan generator sets, leading engine brands that have state of the art technology and have compliance with ISO 8528, ISO 3046, BS 5514, DIN 6271 standarts, are being used. These engines with low fuel consumption, provide accurate speed setting and order, mount to the fuel pump, also have mechanic or electronic type governors. Alternator In products Teksan produced, leading alternator brands of the world that have state of the art technology, high quality, productivity and durability, are being used. All alternators, which pass necessary test process and found appropriate according to EC 60034-1; CEI EN 60034-1; BS 4999-5000; VDE 0530, NF 51- 100,111; OVE M-10, NEMA MG 1.22. standarts, have bearing system that does not need maintenance, with electronic type voltage regulator providing voltage setting. Control Panel Standard control panel, that is used in Teksan generator sets, ensures comfortable and safe usage. All measured and statistical parameters, operating modes, notice and alarms and condition of generator, are monitored easily from the control panel. On the front of the panel’s metal body has electronic control module and the emergency stop button and the panel’s metal body is made of steel sheet and is painted with electrostatic powder paint.
