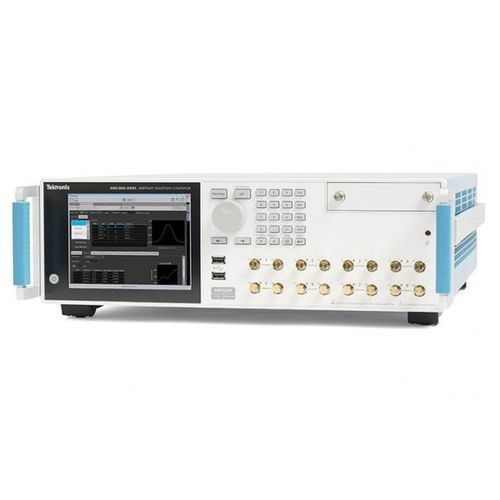

Arbitrary waveform generator AWG5200 series

RFdual-channel4-channel

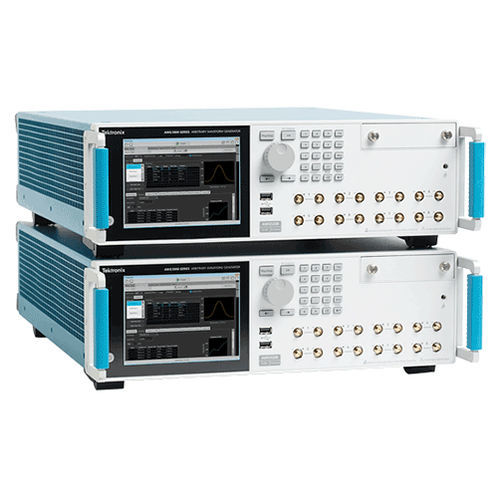

The AWG5200 Arbitrary Waveform Generator meets demanding signal generation needs with high signal fidelity and the ability to scale up to 32 or more channels with multi-unit synchronization at an affordable price. Ideal for advanced research, electronic test and radar, and electronic warfare system design and test. Building a multiple emitter RF signal environment made easy In recent years, proposals have been made for communication systems to operate in radar bands, closing the proximity of Radar and RF signal environments. Tektronix has put together a specific waveform creation plugin for current Arbitrary Waveform Generators that enables engineers to create specific RF environments for many specific applications. Supported applications include simulating/emulating any real world wireless scenarios/environments for EW monitoring, radar receivers with interference signals and Phased Array Antennae and MIMO. • The ability to create multiple scenarios and assign to different AWG channels in one compile. Users can create up to 50 Scenarios. • Scenarios are made up of individual RF Emitters signals and users can define up to 100 Emitters per Scenario
