Mixed-signal oscilloscope 5 Series

digitalanalograck-mount

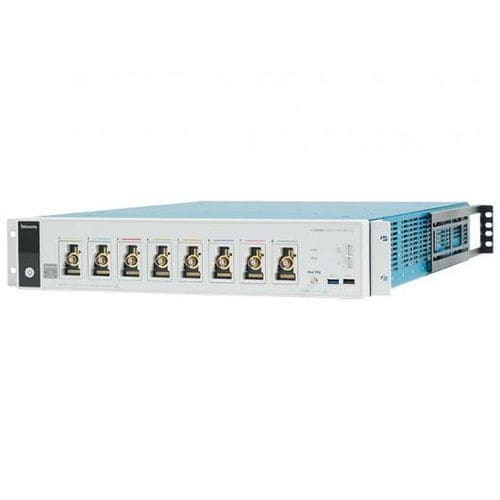

In applications that demand extreme channel density, the 5 Series MSO Low Profile oscilloscope sets a new standard for performance. With 12-bit analog-to-digital converters, this high speed digitizer offers 8 input channels (plus AUX Trig) in a compact package, only 3.5 inches high (2U). Instrument more of your experiment without adding racks Replace your oscilloscopes and fit 6x more channels into your existing rack space. The 5 Series MSO LP offers 8 channels, plus an auxiliary trigger input, in a space-saving 2U instrument -- at a low cost-per-channel. Each the 8 FlexChannel™ inputs can be used as 1 analog channel or 8 digital channels. High-fidelity captures and high-quality data With 1 GHz analog bandwidth, 6.25 GS/s sample rate on all channels, and 125 M record length, the 5 Series MSO Low Profile has the performance you need to capture accurate waveform data with the best possible signal integrity. See more signal detail than ever with 12-bit vertical resolution and ENOB of 7.6 bits at 1 GHz 12-bit analog-to-digital converters provide 16 times the vertical resolution of traditional 8-bit ADCs. Measure small signal details, even if they are riding on large signals. Synchronize multiple high-speed digitizers Turn two remote digitizers into a single virtual instrument. Discover, search and analyze across more channels then ever before. • View all channels simultaneously • Rearrange or group channels • Unlimited automated measurements • Easy Ethernet access Transition from design to manufacturing test, effortlessly Eliminate work by using exactly the same software and test routines in production that you developed during design.
