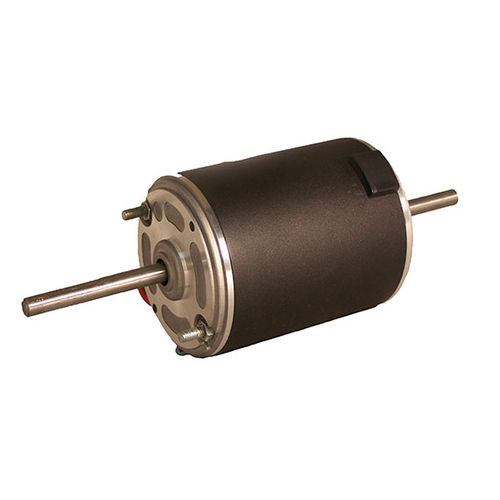

DC motor PI seriesbrushed24 V12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 24 V, 12 V, 90 V
- Configuration
- permanent magnet
- Applications
- for robotics, for medical equipment, packaging machine, for wheelchair, heavy-duty
- Power
Min.: 20 W
(0.027 hp)Max.: 257 W
(0.349 hp)- Torque
Min.: 0.1 Nm
(0.0738 ft.lb)Max.: 0.56 Nm
(0.413 ft.lb)- Rotational speed
Min.: 1,350 rpm
(8,482.3 rad.min-1)Max.: 10,300 rpm
(64,716.81 rad.min-1)- Diameter
Min.: 20.4 mm
(0.8 in)Max.: 80 mm
(3.15 in)55 mm, 64 mm, 75 mm, 76 mm, 80 mm
(2.17 in, 2.52 in, 2.95 in, 2.99 in, 3.15 in)
Description
TelcoMotion offers an extremely wide variety of permanent magnet motors in many different sizes. From heavy duty Brushed DC motors to low cost PM DC motors and DC motor controllers, you are sure to find a DC Motor to meet your needs. Typical applications for of our Brushed DC electric motors include printers, semiconductor processing, packaging, robotics, wheelchairs and other mobile devices, medical equipment, and light industry.
Product Highlights
Feature
•Frame size: 20.4mm
•Voltage range: 1.2VDC ~ 15VDC
•Flat-sided housing type available
•Max. rated output power: 2.76 Watts
•Max. rated speed: 10300 RPM
•Max. rated torque: 36 g-cm (0.5 oz-in)
•Brush materials include carbon, silver metal and copper metal
•Gearheads available from 4:1 to 2000:1 reduction
Application
•Electric toothbrush
•Electric shaver
•Hair clipper
•Noodle maker
•Audio and visual equipment
Features
Frame Size Range55 mm
Max. Rated Voltage18 VDC
Max. Rated Speed2700 RPM
Max. Rated Current2.7 A
Max. Rated Torque100 mNm
Max. Rated Output Power28 W
OptionsGearboxes
