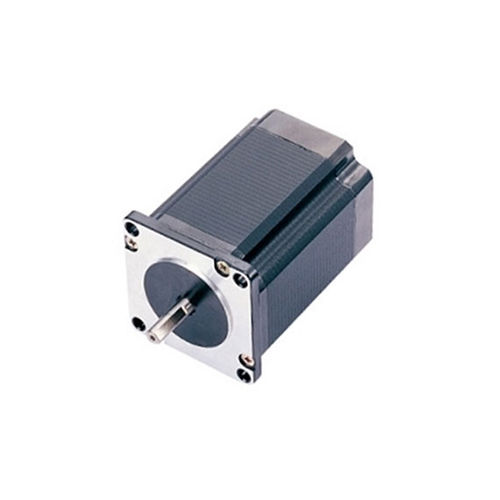

High-torque motor 4T series

two-phasestepper12 V

Our high torque stepping motor is ideal for high torque and high resolution application and generates 1.4 times the torque of a conventional hybrid stepping motor of the same size. NEMA Size 8, 11, 17, 23, and 34 available, Step angles include and 1.8° and 0.9° degree. Custom housing, encoder, gearbox & gearbox sub-assemblies are also available. Product Highlights Feature •NEMA size 8, 11, 17, 23. and 34 available •Max. holding torque: 66,000 g-cm (917 oz-in) •Available in 1.8° / 0.9° step angle •Ideal for High Torque, High Resolution applications •Upper level assembly available •Available modifications include: Custom windings, shaft modifications (flat, pinion, keyway, knurl, cross-pin, hollow shaft), special bearings and mounting configurations •Custom housings, encoders, gearbox & gearbox sub-assemblies are also available Application •Fine positioning applications •Disc drives •Printers •Robots •Machine tools •CD players Features Step Angle1.8° Number of Phase2 phase Rated Voltage Range1.82-9.8 VDC Max. Rated Current1.3 A Max. Holding Torque1300 gcm Winding Résistance1.4 - 39 0 Inductance1.3 ~ 30 mH Rotor Inertia9-17 gm2 Operating Température-10° C to +50° C Insulation ClassB(130° C) Weight110 - 195g OptionsIntegrated Electronics, Encoders, and Gearboxes
