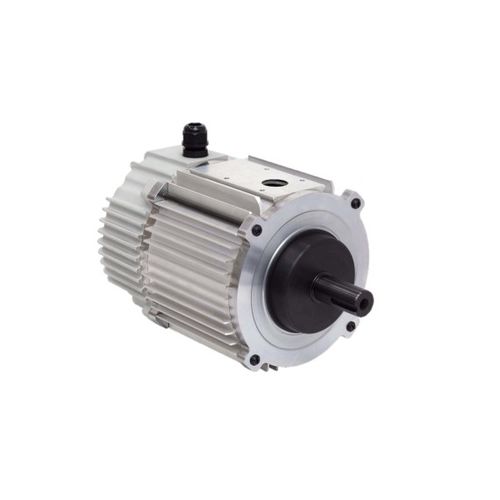

EC motor IntelliGreen® 56

single-phase230 Vrugged

With efficiencies up to 90%, TelcoGreen’s IntelliGreen 56 EC motors are a high quality solution that can significantly improve the energy consumption of HVAC systems. We have designed our EC motors with integrated control functions and the ability to produce optimum airflow in a wide range of environmental conditions. Product Highlights Feature •NEMA 56 SIZE •Input voltage: 115 VAC or 230 VAC, 50/60 Hz (1PH standard) •Standard power rating: 850 W and 1200 W, up to 1500 W •Max torque 25.5 N-m at 450 RPM for 1200 W •Efficiency up to 90% •Integrated speed control available: programmable taps or PWM •IP 55 – totally enclosed design for rugged environments •Large 25mm(1”) shaft standard, customizable up to 30 mm •Operating temperature -20°C to +40°C •Direct Drive Capable: Speeds as low as 100 RPM •Constant speed configuration •Various mounting options, including base mount and X type frame mount •Insulation Class B •Under Voltage, Over Current & Locked-Rotor Protections standard •Optional control: 0 – 10 VDC control available with external UCB Application •Agricultural Ventilation •Poultry •Water Pump •Industrial Fan •Elevator door •Propeller Wall Fan •Power Roof Ventilators •Commercial kitchen ventilation
