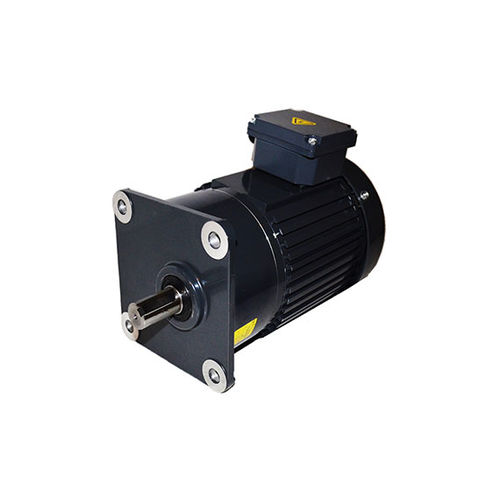

DC gear-motor TG3 series

three-phasesingle-phasepermanent magnet

TelcoGear provides precise PMDC gearmotors. Output Speed Range is 1 ~ 2400rpm. Planetary and Spur Gearheads are available.. We can provide customized solutions to meet your application requirements. Product Highlights Feature •All helical gearing available •Output Speed Range is 1 ~ 500 rpm •Customization •Gearbox Gear Ratio available from 3:1 to 1800:1 •Bearings: Ball (Output shaft ball/sleeve combination) •Lubricant: High -grade synthetic grease •Shaft seals: NBR Rubber, lip type spring loaded •Housing seals: Machine "slip-fit" O ring •Mounting: universal mounting in any position and at any angle Application •Factory/Office Automation Equipment •Automotives •Agriculture Equipment •Food Processing Equipment •Construction Equipment •Traffic System •Robots •Power Plants •Medical Equipment •Aerospace Equipment TG3 Series Foot or Flange Mount, All Steel Helical Gearing Gear Ratio: 3: 1 ~ 1800 : 1 Power: 1/8 ~ 2HP (100W ~ 1.5KW) Available Frame size: G3-18, G3-22, G3-28, G3-32, G3-40, G3-50 Shaft Diameter: Ø3/4 in (18mm) ~ Ø2 in (50mm) Single Phase and Three Phase 3Φ, Class F Insulation, Inverter Duty
