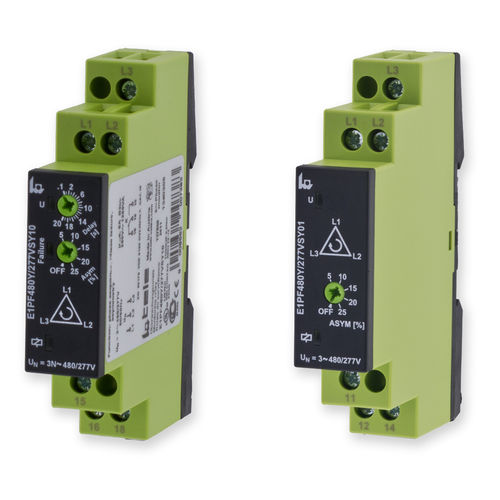

Voltage monitoring relay E1PF480Y/277VSY10phase sequencephase lossphase unbalance
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- voltage, phase sequence, phase loss, phase unbalance, phase sequence, phase comparison, synchronization
- Contact configuration
- 1 NO/NC
- Network
- AC, three-phase
- Applications
- for electric motors, for generators
- Mounting
- DIN rail
- Other characteristics
- programmable, adjustable, time delay, modular, compact, configurable, electronic, with integrated transformer
- Trigger voltage
Max.: 480 V
Min.: 3 V
Description
Voltage monitoring 3-phase with adjustable delay; Phase sequence monitoring; Phase failure monitoring; Asymmetry monitoring; 1 CO
The Wide-Range series of voltage monitors from Tele are new phase monitors that are designed specifically for voltage and phase sequence checking. The E1PF480Y/277VSY10 and E1PF480Y/277VSY01 voltage monitors are made with a flexible asymmetry and selectable trip delay in the program. These devices are constructed for universal functions in networks.
Catalogs
TELE Catalog USA 2021
48 Pages
