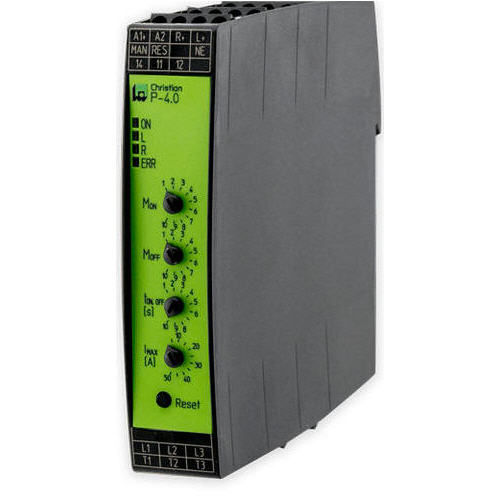

Motor soft starter CHRISTIAN P4.0 SOFTSTART

pumpasynchronous motorelectronic

The P4.0 Series is a range of TELE soft starters that is designed to reduce mechanical stress on drives during the acceleration and start-up process of motors. The TELE P4.0 Softstarter is a 2-phase controlled device and has a width that measures only 22.5mm (0.89in). Furthermore, the P4.0 Series has a compact, industrial design with no moving parts as such as fans. Start- and stop-function and current limiter are integrated for no extra cost. The optional, integrated current monitoring and motor protection features make conventional MCB units as such as contactor combinations obsolete. Advantages: - Reversing anticlockwise - Reversing clockwise - Soft start - Soft stop - Motor protection (optional) - Galvanic separation via forcibly guided contacts (optional) - Blocking protection - Hybrid relay combines the benefits of relay technology with non-wearing semiconductor technology - High availability by temperature monitoring of semiconductors Features: - To reverse 3 phase motors from 550W (0.75hp) up to 4kW (5.5hp) - Settings for starting torque, deceleration torque, soft-start /-stop, overcurrent limit or rated motor current - 4 LEDs for status indication - Reversing with relays without current, soft-start, soft-stop with thyristor - Galvanic separated 24V-inputs for clockwise- and anticlockwise - Relay indicator output for operation - Galvanic separation between the control circuit and power circuit Applications: - Reversing operation for door and gate controls, bridge drives and lifting applications with monitoring of blockage - Conveyor systems with monitoring of blockage - Actuating drives in process controls with blockage monitoring
