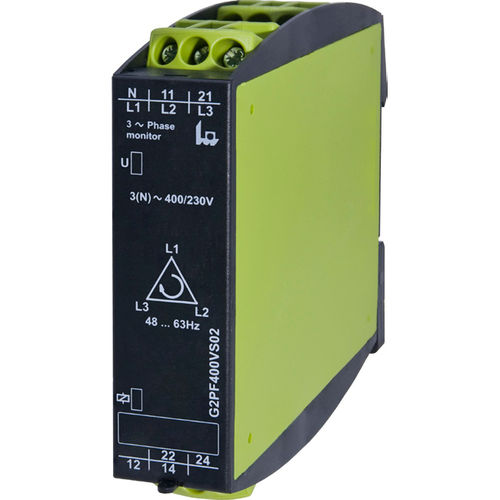

Phase sequence monitoring relay G2PFxxxS02 seriesphase lossphase unbalancephase sequence
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- phase sequence, phase loss, phase unbalance, phase sequence, phase comparison
- Contact configuration
- 2 NO/NC
- Network
- AC, three-phase
- Applications
- for electric motors, for generators
- Mounting
- DIN rail
- Other characteristics
- adjustable, time delay, programmable, multifunction, compact, configurable, electronic, with integrated transformer
- Trigger voltage
Max.: 400 V
Min.: 115 V
Description
The monitoring relays with the WatchDog seal provide detailed status indications in a compact, space-saving housing. The devices are notable for isolating the supply from the measuring circuits even for DC applications.
Voltage monitoring in 3-phase mains
Monitoring relays - GAMMA series
Monitoring of phase sequence and phase failure
Detection of reverse voltage
Connection of neutral wire optional
Supply voltage = measuring voltage
2 change-over contacts
Width 22.5mm
Industrial design
