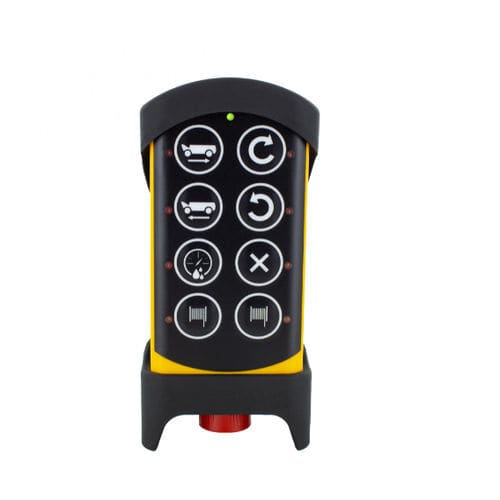

Radio control TG-T9 series
with buttons8-buttonwith emergency stop

Radio control - TG-T9 series - Tele Radio - with buttons / 8-button / with emergency stop
Radio control - TG-T9 series - Tele Radio - with buttons / 8-button / with emergency stop
Radio control - TG-T9 series - Tele Radio - with buttons / 8-button / with emergency stop - image - 2
Radio control - TG-T9 series - Tele Radio - with buttons / 8-button / with emergency stop - image - 3
Radio control - TG-T9 series - Tele Radio - with buttons / 8-button / with emergency stop - image - 4
Radio control - TG-T9 series - Tele Radio - with buttons / 8-button / with emergency stop - image - 5
Radio control - TG-T9 series - Tele Radio - with buttons / 8-button / with emergency stop - image - 6
Add to favorites
Compare this product


Characteristics

Type
radio
Control interface
with buttons
Number of buttons
8-button
Features
with emergency stop, on/off
Protection level
IP66
Product applications
for tower cranes, industrial, for trucks, winch, for fecal barriers, for hoists, for conveyor belts, for excavators, for hoists, trailer, for forest harvesters, for conveyor belts
Battery type
rechargeable, Li-ion
Other characteristics
safety, rugged, with feedback, PLe CAT3, SIL3, Modbus, CANopen
Length

160 mm
(6.3 in)

Width

76 mm
(2.99 in)

Weight

295 g
(10.406 oz)

Temperature

Max.: 55 °C
(131 °F)

Min.: -20 °C
(-4 °F)

Frequency

433 MHz, 915 MHz

Continuous working time

30 h

Description

This series, the Tiger G2, is considered as the next generation of the Tiger System as the products under this series are more compactly designed, but with the larger transmitters present in the previous system. Because this is a Tiger product, safety measures are prioritized, thus this the stop function as well as the two relays in the receiver of this product is an accordance with SIL3 IEC 61508 standard and PLe. The Tele Radio TG-TX-MNL8 is a re-chargeable, 433-MHz transmitter which specially features the following specifications/properties: a weight of about 295g with inclusion of batteries, a dimension measuring approximately 76 x 160 x 37 mm, a protection class of IP66, an operating temperature range of -20 to 55 °C and finally, an article number of TG-T9-1. This transmitter is primarily utilized for winches, EOT cranes and stone crushers/screeners. Also available in 915-MHz model (TG-TX-MNR8). Certifications: FCC, CE, G Lloyd, IC
