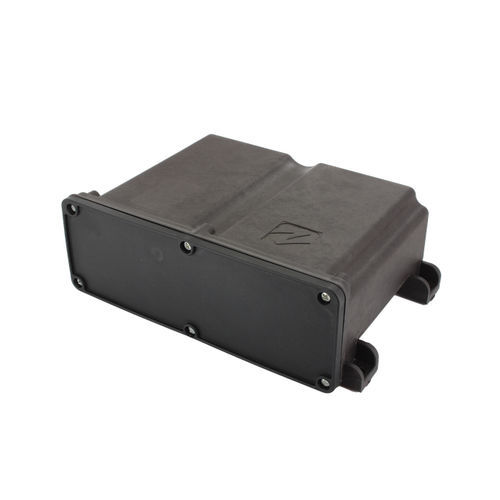

Radio remote control receiver PN-R23-04

16-channelCE certifiedFCC certified

Panther receivers come in a variety of sizes, from tiny CANopen receivers to receivers with up to 19 relays. Several receivers are also rated for PLd making them one of the safest products on the remote control market. They all come in a high-quality and robust housing with IP65 or IP66 depending on size.Panther offers unique configuration possibilities. The customer can decide which relay or relays to activate when a transmitter button is being pressed – flexible! The transmitter buttons can be redirected to activate any relay or series of relays. Pressing just one button can start an almost unlimited chain of events, e.g. activating several relays with a specified amount of time in between. The relays can be assigned momentary or latching functionality and can be set to interlock in any way that the customer wants. The transmitter LEDs are programmable, for example to indicate whether a function has been activated or not. It is possible to get a customised foil or faceplate, useful when the customer wants specific symbols for your functions. Frequency 2,4 GHz 16 channels Power supply 12V AC & 24V AC & 48V AC & 115V AC & 12-24V DC & 230V AC Protection IP66 Certifications CE, FCC, IC Weight 943 g Dimensions ~ 209 x 147 x 71 mm Temperature -20 to +55 °C **Code combination** 4.000.000.000 Function relays 15 Bus system
