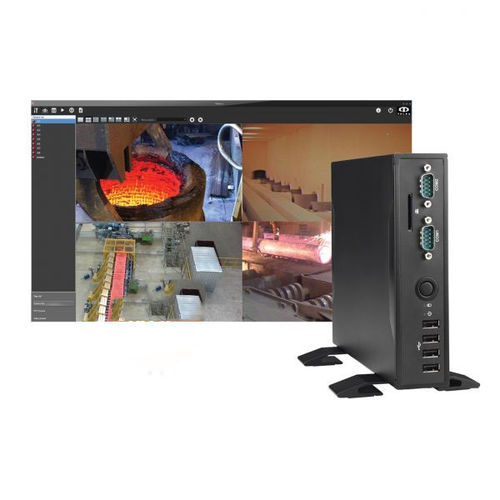

Embedded computer DMS3_Ent7

Intel® CoreUSBPROFIBUS

Embedded IP based “Digital Video Matrix” powered by Intel® Core processor. Storage 60GB 2.5” SSD, memory 2x4GB DDR3L. WINDOWS 7 professional 64 bit. Supplied with enterprise version of Matrica software embedded, it allows to display video streaming coming from up to 128 Telea’s MegaPixel cameras/codec, up to a maximum of 16’s simultaneously. Up to 31 other Digimatrix Decoder and relevant monitors may be managed. Management and logical programming with activation of relay modules up to 384 DI/DO (licenses excluded). PTZ cameras managed with virtual keyboard/USB mouse, USB Joystick controller available as option. Fanless passive cooling for 24/7 nonstop operation. Instant recording function. Integration with automation systems with various communication protocols such as MODBUS, Profibus, etc (licenses excluded). Integration with alarm central units, such as TecnoAlarm protocol (license excluded). Compact dimension, designed to be mounted on the backside of a LCD monitor (75/100mm VESA mount supplied). Power supply: input 100~240Vac, 50/60Hz. Low power consumption: max 26.5W. Operating temperature: 0°-40°C.
