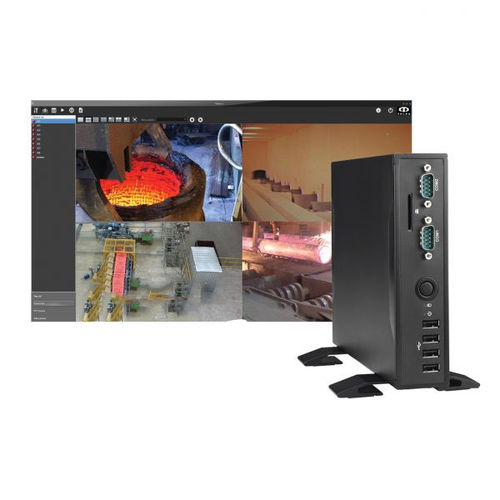

Embedded computer DMS3_Pro7

Intel® CoreUSBWindows 7

Embedded IP based “Digital Video Matrix” powered by Intel® Core processor. Storage 60GB 2.5” SSD, memory 2x4GB DDR3L. WINDOWS 7 professional 64 bit. Supplied with professional version of Matrica software embedded, it allows to display video streaming coming from up to 64 Telea’s MegaPixel cameras/codec, up to a maximum of 16’s simultaneously. Up to 15 other Digimatrix Decoder and relevant monitors may be managed. Management and logical programming with activation of relay modules up to 192 DI/DO (licenses excluded). Instant recording functions. PTZ cameras managed with virtual keyboard/USB mouse, USB Joystick controller available as option. Fanless passive cooling for 24/7 nonstop operation. Integration with alarm central units, such as TecnoAlarm protocol (license excluded). Compact dimension, designed to be mounted on the backside of a LCD monitor (75/100mm VESA mount supplied). Power supply: input 100~240Vac, 50/60Hz. Low power consumption: max 26.5W. Operating temperature: 0°-40°C.
