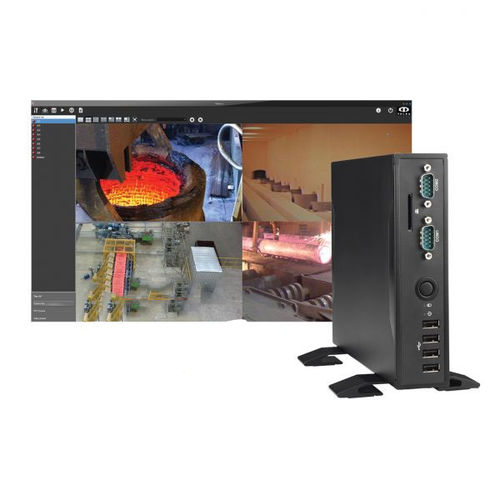

Embedded computer DMS3_Std5

Intel® CoreUSBWindows 7

Embedded IP based “Digital Video Matrix” powered by Intel® Core processor. Storage 60GB 2.5” SSD, memory 2x4GB DDR3L. WINDOWS 7 professional 64 bit. Supplied with standard version of Matrica software embedded, it allows to display video streaming coming from up to 16 Telea’s MegaPixel cameras/codec simultaneous. Up to 3 other Digimatrix Decoder and relevant monitors may be managed. Management and logical programming with activation of relay modules up to 48DI/DO (licenses excluded). PTZ cameras managed with virtual keyboard/USB mouse, USB Joystick controller available as option. Fanless passive cooling for 24/7 nonstop operation. Compact dimension, designed to be mounted on the backside of a LCD monitor (75/100mm VESA mount supplied). Power supply: input 100~240Vac, 50/60Hz. Low power consumption: max 26.5W. Operating temperature: 0°-40°C.
