Audio amplifier PMD125-VClass DmodularEthernet
Add to favorites
Compare this product
Characteristics
- Type
- audio
- Other characteristics
- Class D, Ethernet, modular
- Voltage
100 V
- Power
125 W
- Frequency
Min.: 80 Hz
Max.: 200,000 Hz
Description

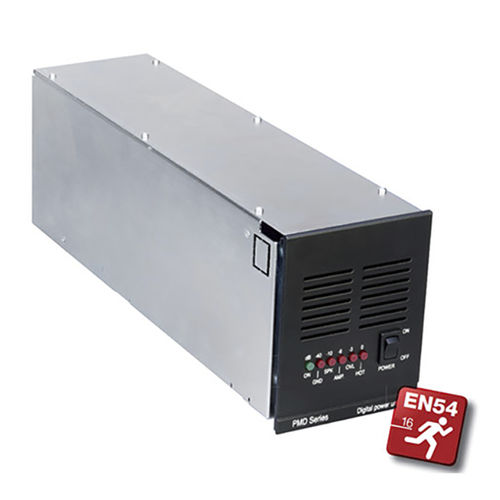

Modular Audio Amplifier, 125W rated output power, Class D, EN 54-16 certified with diagnostic functions.
Power outputs 100 V. Distortion at rated power < 1%. Frequency response 80-20.000 Hz, Low Cut filter (- 3 dB) 330 Hz. Double RJ45 input connector for In/Out audio and serial line. Controlled by RS485 or ethernet communication line( using SSV5130 optional module) from Telea Galaxy Server or CR8506-V controller.
Mains power supply 230 Vac ± 10%(200W) - 50/60 Hz and 24 Vdc for back up function.
Dimensions (W x H x D) 100 x 130 x 395 mm. Weight 6 kg. To be used inside PMS2001 Card-cage standard rack 19"
