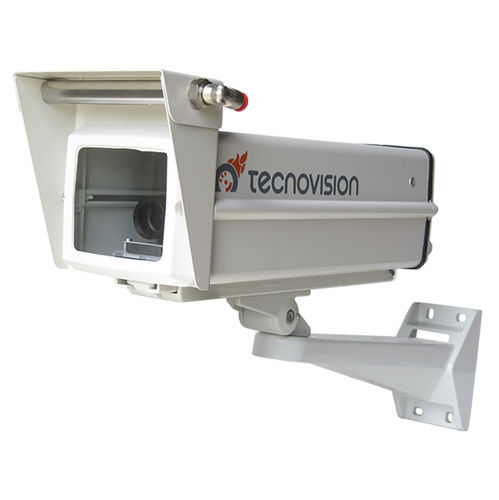

Camera housing AIR08X500rectangularextruded aluminumhermetic
Add to favorites
Compare this product
Characteristics
- Configuration
- rectangular
- Material
- extruded aluminum
- Application
- for cameras
- Protection level
- hermetic, IP66
- Other characteristics
- die-cast, pressurized
- Width
105 mm
(4.1 in)- Height
86 mm
(3.4 in)- Depth
350 mm
(13.78 in)
Description
Air cooled camera housing for temperature up to 90°C. Internal available dimensions: 105x86x350 mm. Flat glass window: 80x70 mm. Power supply 230Vac for heater and thermostat. Compressed air cooling circuit: interconnection 1x1/4”M-BSPP. Temp. IN <35°C, pressure IN from 0.5bar to 1bar max. Requires the use of air quality instrumentation, available through GFATEC filter assembly series. Designed to operate in dusty environments. Cable glands No. 3 M16x1.5. Die-cast and extruded aluminum body. Opening slide and hang system. Color white RAL9002. IP66. Supplied with air barrier and wall mounting brackets.
Other TELEA TECNOVISION SRL products
Vision system up to 250-90°C / AIRTEC
