Camera housing SON01X701cylindricalstainless steelhigh-temperature
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical
- Material
- stainless steel
- Application
- for cameras
- Protection level
- high-temperature
- Depth
700 mm
(27.56 in)
Description

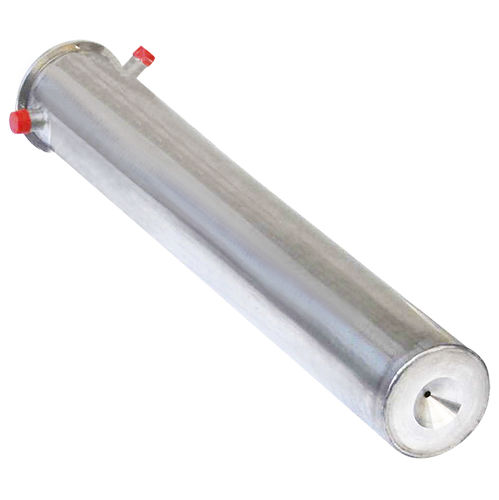

TV Camera housing SONDATEC 1.0 for CAMTEC cameras, designed for continuous operation with high temperature up to 2200°C, water and air cooled. Straight vision allows to use up to 105° diagonal angle of view lenses. Made by stainless steel AISI316L (On request available version in AISI310S). Diameter: 101,6mm, length: 700mm. Complete with back cover ready for KITTEC connection series. Air inlet 3/8"M-BSPP, water inlet/outlet 1/2"M-BSPP.
Other TELEA TECNOVISION SRL products
Vision system up to 2200°C / SONDATEC
