- Cylindrical enclosure
- TELEA TECNOVISION SRL

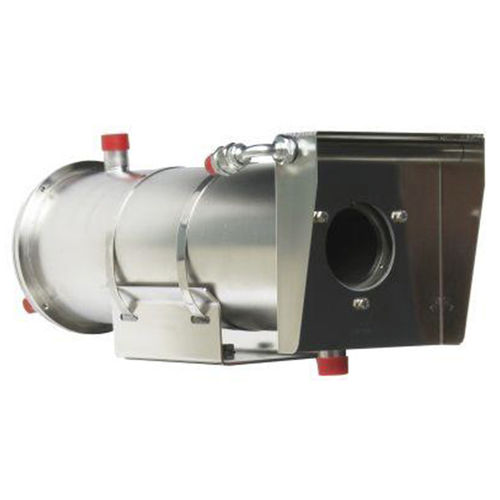

Camera housing ACQ07X210cylindricalstainless steelhermetic
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical
- Material
- stainless steel
- Application
- for cameras
- Protection level
- hermetic, IP66
- Other characteristics
- pressurized
Description
ACQUATEC housing IP66 for cameras with power supply max 24Vac, designed for continuous application with high temperature up to 90°C, with compressed air cooling system (Tin<35°C @1Bar - 3Nm3/h) and special air barrier for crystal protection. Internal available dimensions: Ø90 x 320mm. Minimal optic usable without interception: 3,5mm (1/3”). Realized in Stainless steel AISI304. Interconnections air circuit 1x1/4”M-BSPP, 60° flared, in nichel plated brass. It requires the use of compressed air instrumental, available through GFATEC filter group (not included). Complete with anti-condensation resistance and 12Vdc heating.
Other TELEA TECNOVISION SRL products
Vision systems up to 400°C / ACQUATEC
