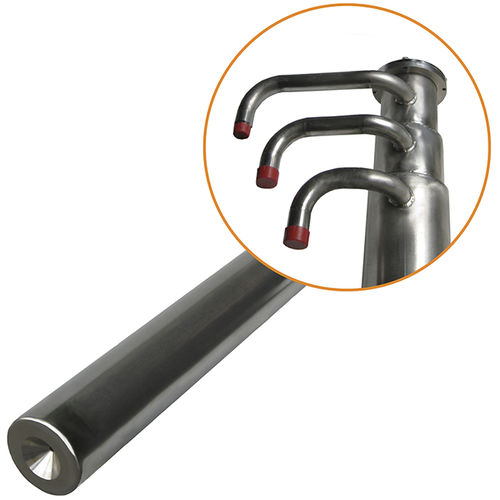

Cylindrical housing SON01X121stainless steelfor camerashigh-temperature
Add to favorites
Compare this product
Characteristics
- Configuration
- cylindrical
- Material
- stainless steel
- Application
- for cameras
- Protection level
- high-temperature
- Depth
1,200 mm
(47.24 in)
Description
Housing 2.0 for camera CAMTEC for working up to 2200°C, water and compressed air cooled. Axial vision, for lens up to 105° diagonal angle of view. Made by stainless steel AISI316L (On request available version in AISI310S). Diameter: 89 mm, length: 1200 mm. Water fitting: ½” M-BSPP, air: 3/8" M-BSPP. Air and water inlet connection is at left side (rear view).
