Sulfur analyzer 6000TSL / 6400-TSL

liquidstemperaturefor integration

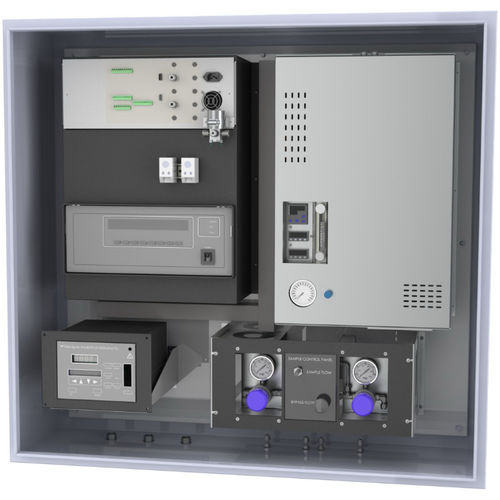

This Model 6000-TSL System is designed for analyzing total sulfur concentration in liquid samples. It consists of a Model 6400EU SO2 UV Fluorescence Analyzer, a Quartz Tube Converter Module (QTCM), a Total Sulfur Liquid Control Unit (TSL-CU) and a Sample Control Panel. The system is housed in a freestanding NEMA-4 enclosure with ATEX rated X-purge System. It is suitable for operation in Zone 1 EEx p IIC T3 environments. Advantages Ranges from 0-30ppm to percent cycle time from 2 to 6 min Non-consumable sensing technology High-temperature quartz tube convertor complete sulfur conversion No maintenance of QTCM expected in first two years of service No pure oxygen required as a utility gas Single and multiple sequenced stream configurations available Class I Div 1 (Zone 1) and Class I Div 2 (Zone 2) configurations available Theory of Operation The undesirable sulfur compounds present (i.e. H2S, DMS, COS, CH3SH, CS2, etc) are converted into sulfur dioxide (SO2) under precisely controlled temperature and flow conditions.
