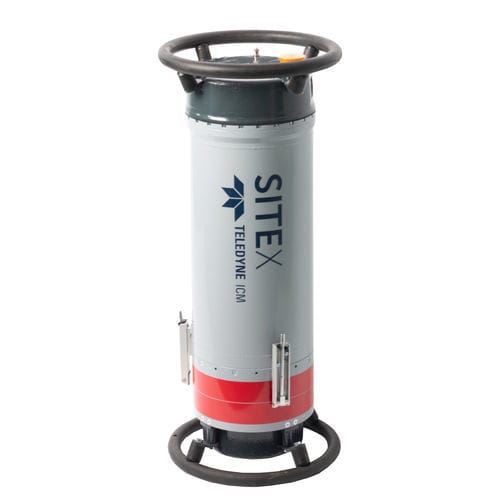

Portable X-ray generator C3205
panoramic

Portable X-ray generator - C3205 - Teledyne ICM - panoramic
Portable X-ray generator - C3205 - Teledyne ICM - panoramic
Add to favorites
Compare this product


Characteristics

Type
portable, panoramic
VDC

Min.: 90 kV

Max.: 320 kV

Description

PRODUCT INFORMATION Radiation geometry : Panoramic Output voltage range : 90 to 320 kV Tube current range : 1 to 5 mA Tube current at full output : 5.0 mA Constant power mode : No Working cycle at 30°C (*) : 100 % Steel penetration (**) : 65 mm Weight (excluding guard rings) : 32 Kg Overall dimensions : Ø 346 x 831 mm Leakage dose at 1 m at full output : <10 mSv/h Optical focal spot (EN12543) : Ø 5 x 0.8 mm Max. useful angle : 360 x (2X20) ° Inherent filtration : 2.5 (Al) + 0.4 (Ni) mm Be Waterproof level : IP65 Operating temperature : -25 to +70 °C Storage temperature : -40 to +80 °C Built-in carrousel featuring 5 outputs : No Guard rings : 2
