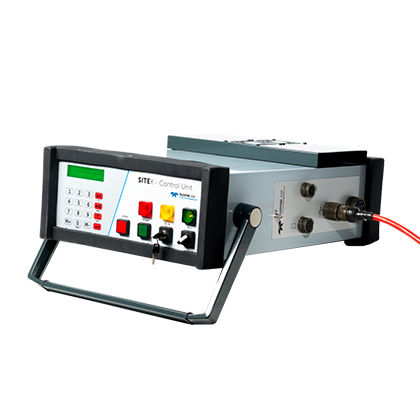

Directional and panoramic X-ray generator control unit SCU286

PERFORMANCE The SCU286 has a system for direct measurement of the high voltage delivered by the X-Ray generator to guarantee the accuracy of the radiological parameters. Based on this data the control system maintains the stability of mA and kilovolts to within ± 0.5% in any selection range. SITEX & XS units offer a totally constant quality of exposures, as they are virtually exempt from fluctuations in the power supply. OPERATOR INTERFACE The user-friendly high strength polyester front panel is equipped with a sensory-type 16-key keypad, a high brightness display and an anti-reflection screen. The SCU286 also includes a programmable access codes system that features three security levels (supervisor, operator and service engineer) which limit the access to certain functions in relation to the security level selected. DATABASE First and foremost, our SCU286 control unit is intended to be user-friendly. In order to reduce the number of test shots to a minimum, the operator can use a virtually unlimited source of standard exposures that have been previously pre-defined. In fact, all of the radiological parameters of exposure can be memorized by simply pressing a single key, which means the operator can return to this whenever he or she wants to without having to key them back in again! kV, mA and time setting steps : 1.0, 0.1, 1.0 kV, mA, sec Exposure time range : 1 sec to 99 min 59 sec min, sec Direct kV and mA measurement (Control accuracy) : Yes / +0.5 / -0.5 % Simultaneus display of measurements and settings : Yes Pilot light indicator (Power ON, X-ray ON, Securities) : 3 Independant START and STOP buttons : Yes
