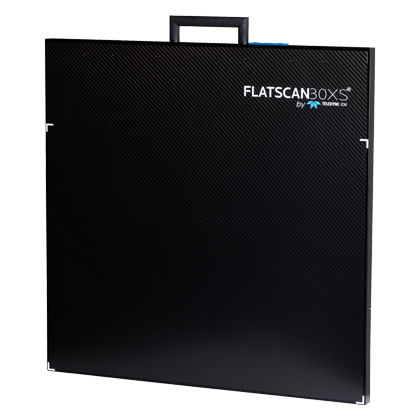

X-ray detector FLATSCAN30 XS

diode arrayinspectionportable

PERFORMANCES With a 30” detection area, the FLATSCAN30 XS features the biggest detection surface on the market. In fact, with its larger inspection zone, the FLATSCAN30 XS will enable EOD operators to assess the level of risk of most suspect packages in just one single X-Ray shoot, which means the user’s exposure to danger will be dramatically reduced. Developed both for and by EOD operators, this detector has been specifically designed to be the most ergonomic and user-friendly digital panel on the market. PRODUCT INFORMATION Sensor type : Linear diode array Resolution : 40 AWG / 1.25 lp/mm Pixel size : 400 - 800 μm Dynamic range (grey levels) : 16 bits Active area : 614 x 460 mm Max. penetration in steel with CP120B : 35 mm Max. penetration in steel with CP160B : 45 mm External dimensions : 665 x 628 x 25 mm Weight : 5.7 Kg Operating temperature : -10 to +50 °C Storage temperature : -10 to +65 °C Communication protocol : Bluetooth, Wifi, or cable
